| สถานที่กำเนิด: | Xi'an |
| ชื่อแบรนด์: | XZH TEST |
| ได้รับการรับรอง: | CE |
| หมายเลขรุ่น: | XHGX507C |

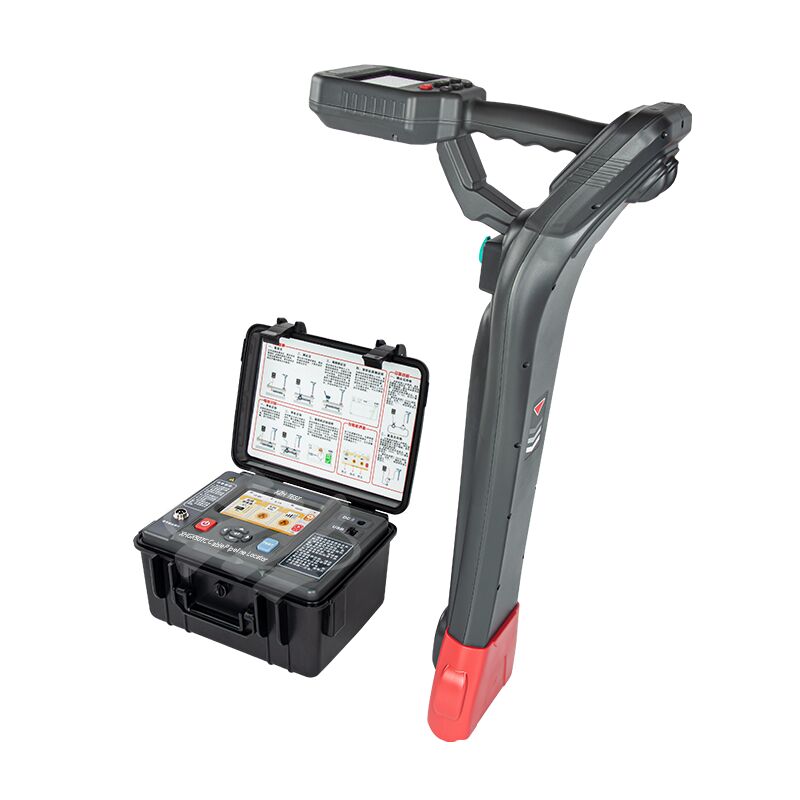

The instrument uses a variety of filtering technologies, has anti-interference capabilities, can accurately locate and measure depth, and is suitable for the detection and patrol of various underground metal pipelines, pipeline management and maintenance, municipal planning and construction, and pipeline detection in power supply and other departments.
Features
1. Multiple detection modes: classic positioning mode, wire cruise mode, signal distortion measurement mode;
2. Classic positioning mode: compass, direction and signal amplitude display, intuitive display of the left and right directions of the pipeline.
3. Wire cruise mode: 360° all-round pipeline path indication, continuous display of depth, current and relative position of pipeline.
The interface is simple and intuitive, and can be operated without experience
4. Signal distortion measurement mode: simultaneous display of peak and trough waveforms. In the distortion-free site, the peak and trough positions should be consistent, and the site shape should be symmetrical relative to the center line.
Transmitter clamp: suitable for coupling method. The transmitting clamp couples the signal emitted by the transmitter to the target cable. The jaw size is Φ125mm. The transmitting clamp is directional, and the transmitting signal flows in from the direction indicated by the arrow on the transmitting clamp.
Transmitter Specifications
|
Function |
Multiple frequency signal transmission modes |
|
Power |
10.8V large capacity rechargeable lithium battery |
|
Output method |
Direct connection method, coupling method, induction method |
|
Output frequency |
640Hz,1.28kHz,2.56kHz,3.20kHz,4.09kHz,8.19kHz,10.2kHz,32.7kHz, 65.6kHz,81.9kHz,197kHz
|
|
Output Mode |
Automatic identification, automatic identification according to different accessories |
