| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | XZH Test |
| ได้รับการรับรอง: | CE/ISO |
| หมายเลขรุ่น: | xhld530a |

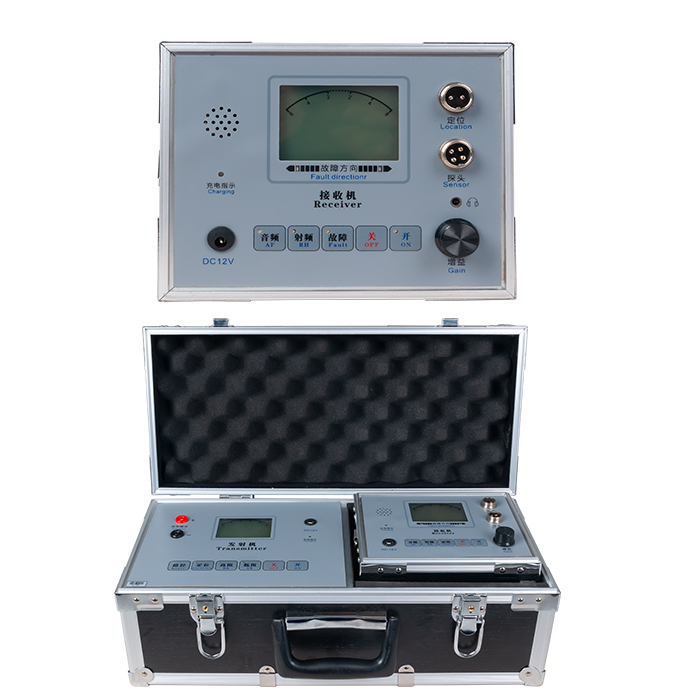

XHLD530A consists of transmitter, receiver, magnetic induction wand, location detection frame and other components. This instrument is a special instrument cable. Cable fault location test for the test object is a metal conductor (wire pairs, sheath, and shield) of a variety of fiber optic cable. Its main function is to locate bad insulation test points, probe and cable depth testing cable path.
Main Function
Main features
Higher receiving sensitivity
Lower Static drift
High positioning accuracy
Strong anti-interference capability
LCD display shows the signal and status
Charger and Built-in lithium battery for charging
Technical Data
Tracing positioning distance: telephone cable is around 3km; other cables are up to 20km
Positioning impedance range: 0-5MΩ
Positioning accuracy: <± 10cm
Depth probe: <3m
Power supply: DC
Dimension: 174*80*74
Weight: 5kg
Street light cable fault locator
packing list
| Name | Qty. |
| Transmitter | 1 |
| Receiver | 1 |
| Magnetic induction probe | 1set |
| Positioning probe frame | 1set |
| Probe pin | 2 |
| Ground stake | 1 |
| Power cable | 2 |
| Signal output line (red, black) | 1set |
| Positioning probe frame connection line | 1 |
| Strap | 1 |
| Sphere gap (optional) | 1set |
| Vibration sensor (optional) | 1 |
| Vibration sensor cable (optional) | 1 |
| Headphones (optional) | 1 |
