| สถานที่กำเนิด: | ซีอาน มณฑลส่านซี ประเทศจีน |
| ชื่อแบรนด์: | XZH TEST |
| ได้รับการรับรอง: | ISO CE |
| หมายเลขรุ่น: | XHJB612 |

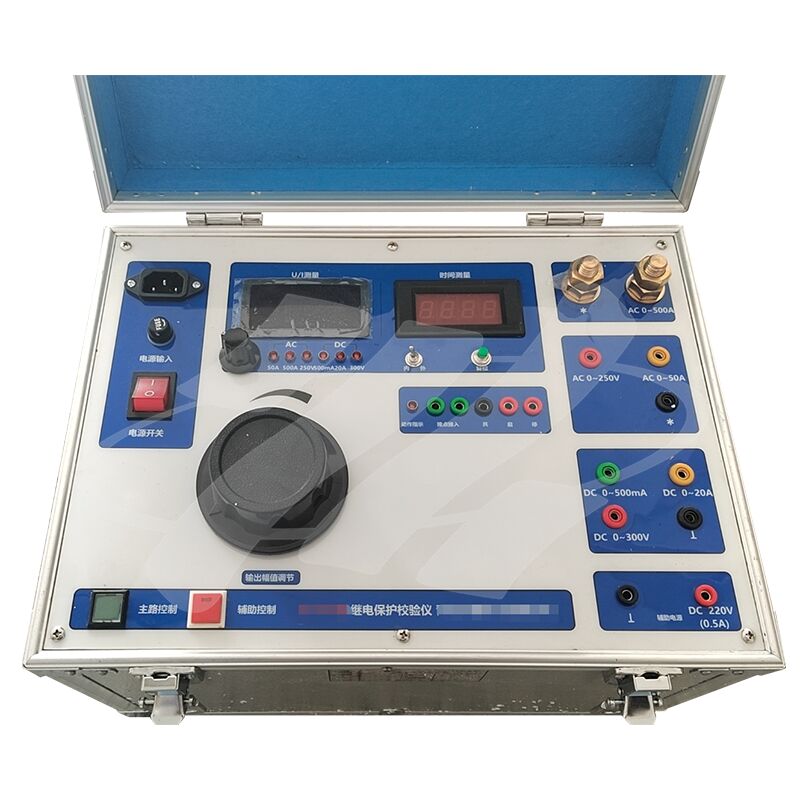

Product Overview: The XHJB612 relay protection tester can test and verify the operating voltage/current values, return voltage/current values, operating time, and return time of various electromagnetic, rectifier, and transistor integrated circuit relays, as well as the operating values, return values, charging and discharging time, and operating time of reclosing relays. It can also test the starting current, sensing element operating current, instantaneous breaking element operating current, and operating time of GL and LL type inverse-time relays.
Performance Features
★ Large LCD screen with Chinese character display, easy to read and understand;
★ Real-time display of contact status, button-based switching of measurement ranges, simple and convenient on-site operation;
★ Passive output capability, flexibly used for auxiliary control during testing;
Technical Parameters
☆ Output: 4.5-digit digital voltmeter, 3.5-digit digital ammeter, 0.5% class
AC Current: 0～5A, 0～50A, 0～150A
AC Voltage: 0～250V, <5A
DC Current: 0～20A
DC Voltage: 0～250V, <5A, 0～12V, <0.5A
☆ Auxiliary Power Supply: 220V, 0～4A
☆ Time Measurement: 0～9999.9999S, Accuracy: 0.0001S
☆ Operating Power Supply: AC 220V±10% -15～40℃ 75%
