| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | XZH Test |
| ได้รับการรับรอง: | CE/ISO |
| หมายเลขรุ่น: | XHZS506YS |
Step-by-Step Instructional Expression:

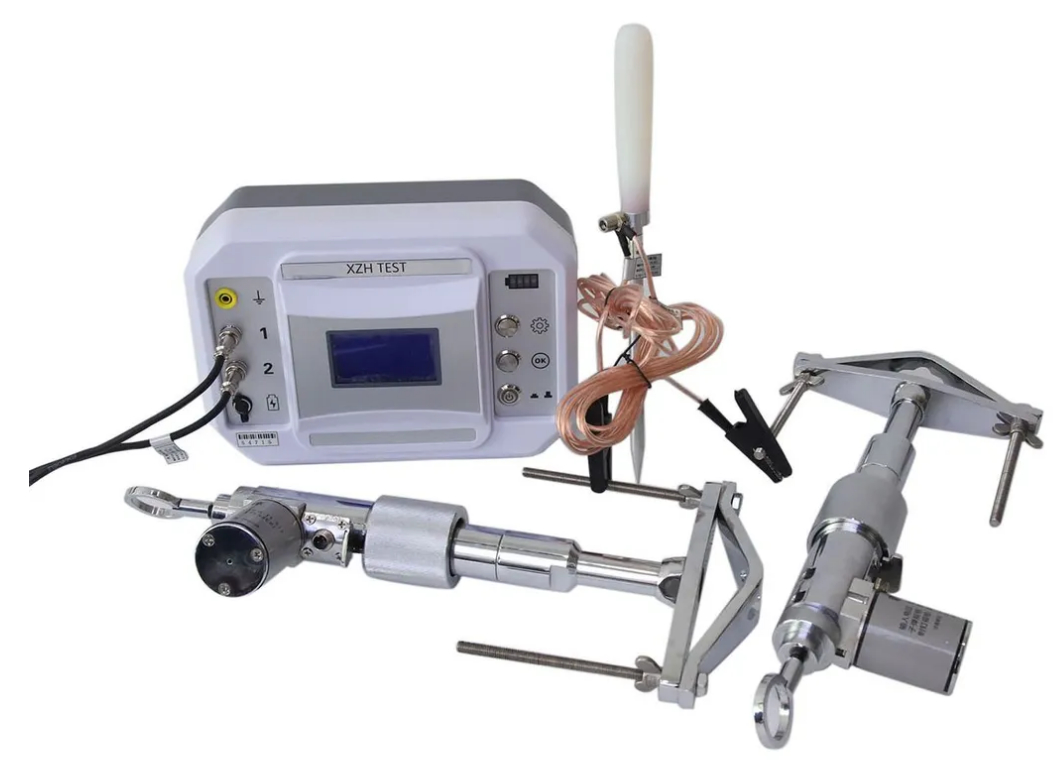

- First of all, get to know the two parts of the cable piercing device: the shooter and the controller.
- The shooter, designed in a low-speed piston type specifically for piercing cables, is lightweight and easy to install. Fixing it at various angles is a piece of cake.
- The controller is equipped with electronic detection circuits and can remotely control the shooter to fire nails.
- When in use, the shooter fires a nail to penetrate the cable. If the cable is charged, it will short-circuit and discharge. If there is no electricity, the cable has been de-energized and is safe to operate.
Features:
1. When the angle between the two guns is not 120°, at least one gun body can achieve the purpose of stabbing and form a short circuit point;| Shooting device | 2 gun bodies; |
| Remote control distance | greater than 10 meters, can be remote controlled across the wall; |
| Control line length | 5 meters; |
| Clamp diameter | φ30-150mm; |
| Working power supply | charging AC 220V/50Hz, built-in battery can work continuously for more than 10 hours; |
| Controller | 270×230×120mm 2.5kg; |
| Complete set | 470×380×210mm 15.5kg (double gun 506Y). |
| Cable diameter mm | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Nail specifications | PS27C8 | PS37C8 | PS47C8 | PS52C8 | ||||
| Specification | black | blue | yellow | red | Recommended Use | 35kV and below | 35kV and above |
| Power | smallest | Small | middle | big | Use S1 yellow | Use S1 red (6.8*11mm) |
