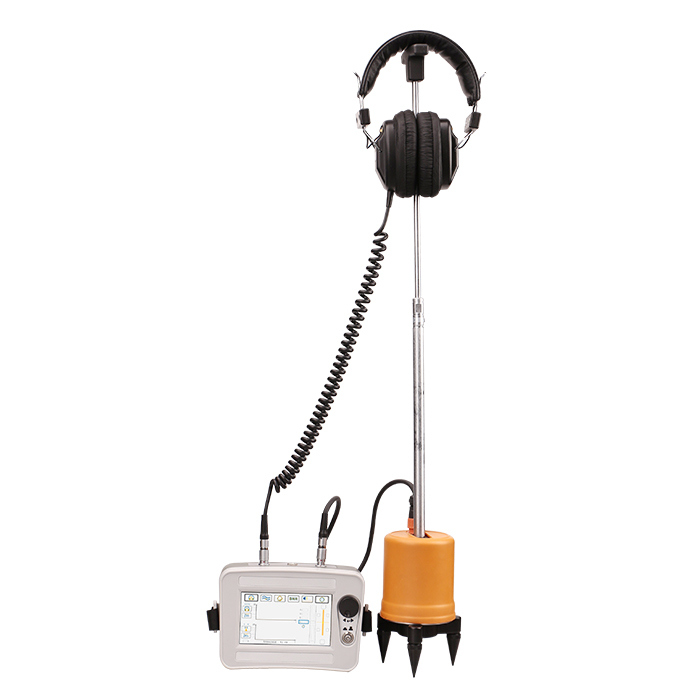

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method

Name: Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDD503E
Price: 2070 USD
Availability: InStock

รายละเอียดสินค้า:

สถานที่กำเนิด:	จีน
ชื่อแบรนด์:	XZH Test
ได้รับการรับรอง:	CE/ISO
หมายเลขรุ่น:	XHDD503E

ข้อมูลรายละเอียด

สถานที่กำเนิด:

จีน

ชื่อแบรนด์:

XZH Test

ได้รับการรับรอง:

CE/ISO

หมายเลขรุ่น:

XHDD503E

เน้น:

High Light

เน้น:

digital underground cable fault locator

cable fault locator with acoustic synchronization

magnetic synchronization cable fault detector

Trading Information

จำนวนสั่งซื้อขั้นต่ำ:

1 หน่วย

ราคา:

2070USD

รายละเอียดการบรรจุ:

กล่องไม้

เวลาการส่งมอบ:

5-8 วันทำงาน

เงื่อนไขการชำระเงิน:

t/t

สามารถในการผลิต:

2000หน่วย/ปี

คําอธิบายสินค้า

Basic Info.

Model NO.

XHDD503E

Test Mode

Saved Test

Usage

Coaxial Cable Tester, Digital Cable Tester

Power

Electricity

Certification

CE, ISO

Customized

Color

Orange

Transport Package

Wooden Box with Foam Inside

Specification

479mmX387mmX210mm

Trademark

XZH TEST

Origin

China Xi′an

HS Code

9030899090

Production Capacity

1000pieces/Year

Product Description

Description
The cable fault locator uses the principles of vibration pickup and electromagnetic induction to determine the specific location of the cable fault point. A high-voltage pulse generator is used to cause flash over discharge at the fault point. Physical phenomena such as vibration waves, sound waves, and electromagnetic waves generated by the flash over discharge at the fault point are picked up by a special probe of the pointing instrument, amplified, processed, displayed, and output by the cable fault pointing instrument. The precise location of the fault point is determined by the tester's hearing and vision. That is, the task of accurately locating the cable fault point "directly above the cable and within the range of rough measurement" is completed.

This fixed-point instrument is suitable for low-resistance, short-circuit, open-circuit and disconnection faults of power cables, high-frequency coaxial cables, street light cables, and buried wires made of various materials with different cross-sections and media, as well as high-resistance leakage and high-resistance flash over fault.

Product features
1. 5-inch touch-high brightness LCD ensures visibility under sunlight.
2. It has 4 test modes: standard, enhanced, noise reduction, and customized.
3. It has four positioning functions: acoustic-magnetic synchronization, pure acoustic, pure magnetic, and step voltage.
4. It has background noise reduction technology and can choose from a variety of filtering methods.
5. Equipped with BNR and mute functions.
4. It has path deviation indication.
5. Equipped with multi-layer physical isolation signal sensors, waterproof grade IP65.
6. Built-in large-capacity lithium battery, long standby time, equipped with fast charger.
7. Small and lightweight, easy to operate, and simple human-machine interface.

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method 1

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method 2

Technical specification

Filter parameters	lAll-pass: 100Hz~1600Hz.
	lLow pass: 100Hz~300Hz.
	lQualcomm: 160Hz~1600Hz.
	lBandpass: 200Hz~600Hz.
Channel gain:	8 levels adjustable.
Magnetic channel gain:	8 levels adjustable.
Step voltage gain:	8 levels adjustable.
Output gain:	16 levels (0~112db)
Output impedance:	350Ω
Acoustomagnetic positioning accuracy:	less than 0.2m.
Step voltage positioning accuracy:	less than 0.5m.
Path identification accuracy:	less than 0.5m.
It has BNR background noise reduction and mute noise reduction functions.
Display control method:	5-inch high-brightness touch screen control.
Power supply:	4*18650 standard lithium batteries.
Standby time:	more than 8 hours.
Volume:	428L×350W×230H
Weight:	6kg.
Ambient temperature:	-25~65ºC; Relative humidity: ≤90%.

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method 3

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method 4

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method 5

Complete view of the whole set of XHDD503E

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method 6

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method 6

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method 7

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method 8

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method 9

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method 10

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method 11

Xhdd503e Digital Underground Cable Fault Locator with Acoustic and Magnetic Synchronization Method 12

Q: Are you trading company or manufacturer ?

A: We are factory.
Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?

A:No, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance.
