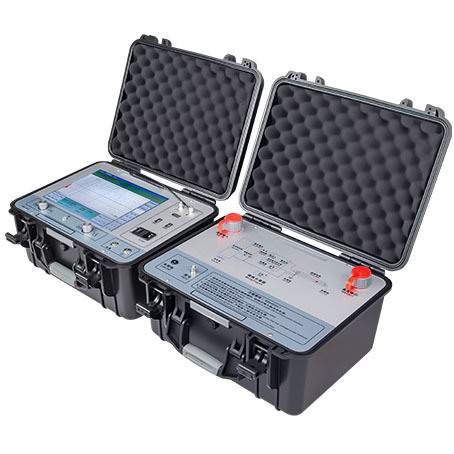

The XHGG502 tdr underground cable fault locator adopts an industrial-grade 12.1-inch touch all-in-one computer and a simple operating software interface to realize human-computer interaction testing. Adopt industrial-grade integrated circuits and devices, built-in large-capacity lithium-ion battery, stable and reliable, and easy to use.
This cable fault tester is a special instrument for measuring and analyzing power cable status and fault distance. This cable fault tester adopts the combination of modern electronic technology and computer technology to realize signal filtering, acquisition, data processing, graphic display, graphic analysis, to complete Cable speed measurement, cable length testing, cable fault distance testing.
This cable fault locator is suitable for low-resistance, short-circuit, open-circuit and disconnection faults of power cables, high-frequency coaxial cables, street light cables, and buried wires of various materials with different sections and different media, as well as high-resistance leakage and high-resistance flashing. network failure.
Welcome you contact us for more information.
| Product name | Underground cable fault pre-locator(TDR) |
| Model | XHGG502 |
| MOQ | 1 Unit |
| Main function | For underground cable fault rough distance measurement |
| Data sampling rate | 60MHz, 120 MHz, 240MHz, 400MHz |
| Test distance | >60Km |
| The test cable length is set | <1Km (short distance);<3Km (medium distance);>3Km(long distance) |
| Pulse amplitude | 400Vpp |
| Pulse width | 0.1uS and 2uS |
| Reading resolution | 0.1m |
| system test accuracy | Less than 0.5m |
| Pulse coupler withstand voltage | 38kVDC |
| Working conditions | temperature -25ºC~+55ºC, relative humidity 85%, atmospheric pressure 750±30mmHg. |
| Measuring method | Low-voltage pulse method, high-voltage flashover method, multiple pulse method |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
XHGG502 ARC Cable fault pre locator
Accurately and quickly detect the main insulation failure of power cables with voltage levels of 35KV and below; calibrate the cable length; roughly test cable fault distance
| Cable fault pre-locator | XHGG502: for cable fault distance test, include a host and a coupler |
Welcome you contact us for more information and service.
Cable fault pre-location: with the reflectometer XHGG502 based on the low-voltage impulse reflection method(TDR), and high-voltage decay(flashover) method (DECAY), arc reflection method(single-shot/ multi-shot).
There are three test mode of XHGG502, low voltage pulse, high voltage flashover, ARC multi-shot.
--------------------------------------------------------------------------------------------------------------------------------------------------------
The below picture shows cable fault distance measured by using ARC multi-shot test mode of XHGG502.
--------------------------------------------------------------------------------------------------------------------------------------------------------
The below picture shows cable fault distance measured by using high voltage flashover test mode of XHGG502
--------------------------------------------------------------------------------------------------------------------------------------------------------
The below picture shows cable length or cable open circuit fault distance measured by using low voltage pulse test mode of XHGG502. When using the low voltage pulse method, it is not necessary to connect the high voltage pulse generator. Other test methods must be used in conjunction with a high-voltage pulse generator.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
